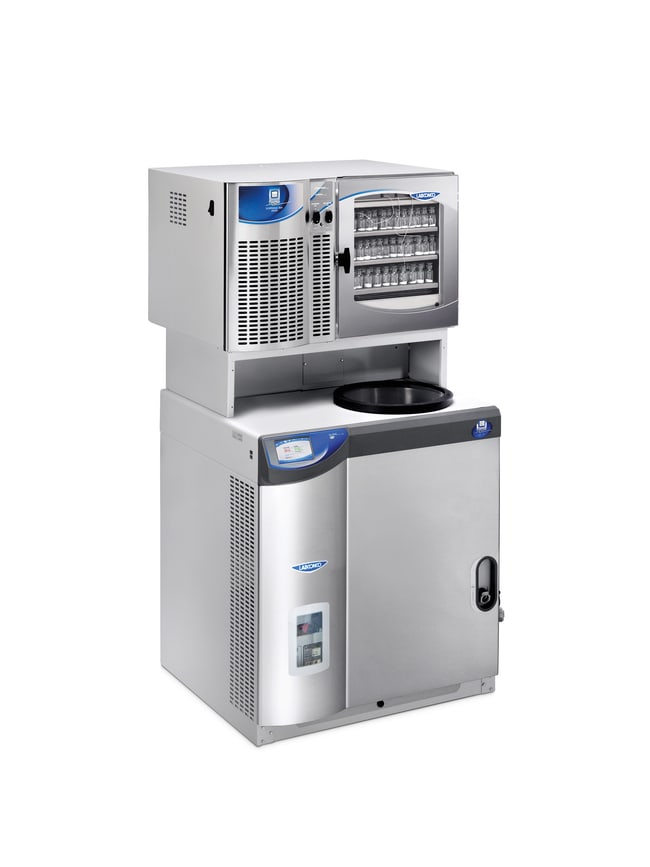

Labconco FreeZone Console Freeze Dryer with Stoppering Tray Dryer and PTFE Coil, Eco-Cool Refrigerant

Product Code. 31374544 Shop All Labconco Corporation Products
Change view
Click to view available options
Capacity (Metric):
6 L
12 L
18 L
Temperature Range (Metric):
-50°C
-84°C
Unit Size:
Each
5 product options available for selection
Product selection table with 5 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Capacity (Metric) Temperature Range (Metric) unitSize
31374544 12 L -84°C Each
31374477 6 L -50°C Each
31374513 12 L -50°C Each
31374504 18 L -50°C Each
31374503 6 L -84°C Each
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 5 options available.
5 options
This item is not returnable. View return policy
Compliant with all EU regulations on HFC refrigerants
Product Code. 31374544 Supplier Labconco Supplier No. 711226090

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy
Compliant with all EU regulations on HFC refrigerants

Description

Acid resistant console freeze dryer with stoppering tray dryer, touchscreen color display, data storage with USB/ethernet output, and email notification.

  • The upright stainless-steel collector coil can hold 6 L, 12 L, or 18 L of ice before it needs defrosting
  • Temperature options include -50°C for water-based (aqueous) samples and -84°C for low freezing-point samples (including acetonitrile)
  • Uses an eco-friendly refrigeration system (HCFC/CFC-free) and meets EU low GWP requirements
  • Internal coil design helps trap vapors efficiently for better freeze-drying performance
  • Optional PTFE-coated collectors are available for working with corrosive compounds
  • Includes useful features like hot gas defrost, a USB port on the side, and an Ethernet port at the back
  • The console has space inside to place the vacuum pump (vacuum pump sold separately)
  • Lyo-Works OS shows a real-time view of collector temperature and vacuum level
  • 5 in. full-color touch screen for easy monitoring and control
  • Supports flexible programming and control of optional drying accessories
  • The optional End-Zone™ feature helps identify when flask freeze drying is complete
  • One-touch data logging helps improve sample quality and reduce overall run time
  • Settings can be customized, including language, time zone, temperature, and vacuum
  • Can automatically send alerts and operating updates to email addresses you enter
  • The front viewing window makes it easy to check the vacuum pump oil level
  • Built-in safety features help protect the vacuum pump, including automatic air release after shutdown, moisture detection to prevent start-up, and automatic shutdown if a leak is detected
  • A vacuum pump (minimum 163 L/min) is required, and drying accessories and freeze-dry glassware may be needed depending on the setup (not included)
  • FreeZone™ Stoppering Tray Dryer provides precise control and flexible programming for consistent results
  • Includes three adjustable, temperature-controlled shelves (16.5 x 12 in.) with sample temperature sensors, providing up to 594 sq. inches of shelf space
  • Shelf temperature control uses circulating fluid that can run from -40°C to +40°C
  • The built-in pneumatic system can stopper containers on all three shelves
  • The backfill port (1/8 in. OD) lets you add inert gas to help protect samples from moisture and contaminants

Specifications

Type Freeze Dryer
Capacity (Metric) 12 L
Sublimation Rate Variable
No. of Shelves 3
Temperature Range (Metric) -84°C
Refrigerant Eco-Cool
Material Powder-coated Steel
Includes Stoppering Tray Dryer, PTFE Coil
Plug Type All except North America
Voltage 230 V

Vacuum pump with a displacement of at least 163 liters/minute, drying accessory and freeze dry glassware (if not bulk freeze drying) are required (not included).
