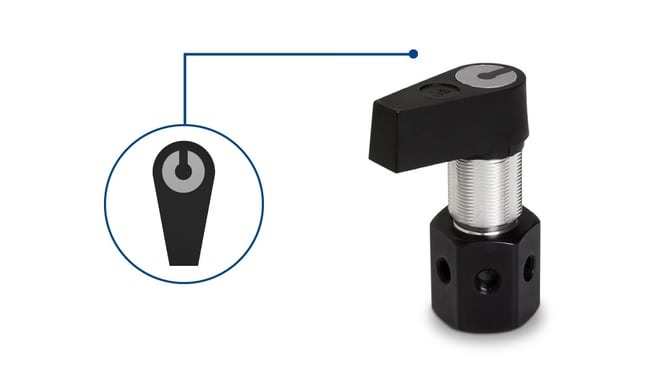

Hamilton™ HVXD6-5 VALVE

Product Code. 11590322
Click to view available options
Actuation:
Manual
Unit Size:
Each
This item is not returnable. View return policy

Product Code. 11590322

Brand: Hamilton™ 86915

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy

Description

Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves.

The small valve body with its chemically inert PTFE/CTFE flow path is ideally suited for low pressure (100 psi) applications. All HV Plug Valves allow you to select and interchange a wide variety of fittings, adapters and tubing, including male and female luers, FEP tubing assemblies, and adapters which thread directly into the valve providing an endless variety of valve configurations for any flow application.

  • Valve Model – 6-5

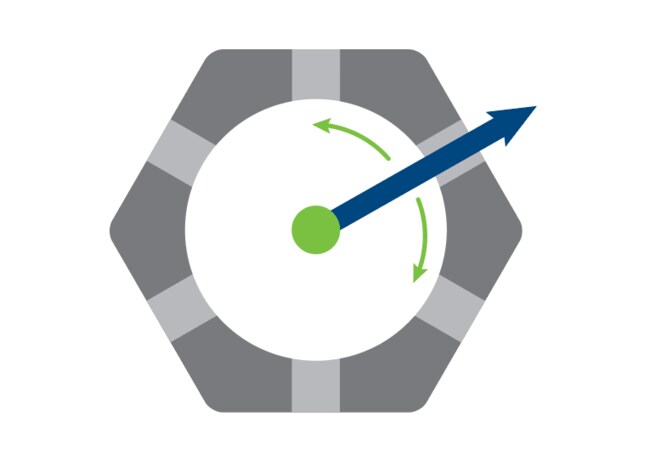

  • Valve Model Description – Distribution Flow Path 6-ports
  • Fluid Path – PTFE/CTFE
  • Valve Size – HVX
  • Nominal Port Diameter – 0.059 inch (1.5 mm)
  • Valve Outer Body Dimension – 1 inch (25.4 mm)
  • Housing Material – Aluminum
  • Total Dead Volume – 27.2 μL
  • Actuated – Manual
  • Break Away Torque – 65 in oz. (455 mNm)
  • Panel Mounting – Yes
  • Panel Thickness – 0.625 inch (15.9 mm)
  • Thread Depth – 0.219 inch (5.6 mm)
  • Threaded Connection – ¼-28
  • Operating Temp High – 38 °C (100 °F)
  • Operating Temp Low – -12 °C (10 °F)
  • Operating Pressure – 0 to 100 psig (0 to 6.9 bar)
  • Storage Temp High – 38 °C (100 °F)
  • Storage Temp Low – -18 °C (0 °F)

Specifications

Actuation Manual
Mode Distribution
Type HVX
No. of Ports 6 Ports
