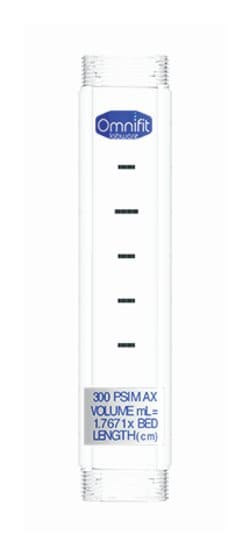

Kinesis™ Omnifit™ Glass Columns for Low/Medium Pressure Liquid Chromatography: Replacement Columns

Product Code. 15224529
Encompass
missing translation for 'orderingAttributeHoverText'
Length (Metric):
100 mm
missing translation for 'unitSize'
Each
This item is not returnable. View return policy

Product Code. 15224529

missing translation for 'mfr': Kinesis™ 006RG1510

This item is currently unavailable or has been discontinued.
View the product page for possible alternatives.
 View alternative products

This item is not returnable. View return policy

Description

Includes

Column Assembly Includes

  • One precision-bore borosilicate glass column
  • Either one PTFE fixed endpiece and one adjustable endpiece with 25μm PE frits or two PTFE fixed endpieces with 25μm PE frits
  • Two 1/4 in.-28 UNF endcaps to connect straight into the colored cap on column end

Fittings Kit Includes

  • One 2m x 1/16 in. O.D. PTFE tubing with 1/4 in.-28 UNF fitting
  • One 0.5m x 1/16 in. O.D. PTFE tubing with 1/4 in.-28 UNF fitting
  • Two M6 endcaps so column can be easily used in an M6 fitting system

Frit Kit

  • Two 25μm PTFE frits
  • Two 10μm PTFE frits
  • Two 10μm PE frits

Requires

Replacement glass columns, fixed and adjustable endpieces, frits, and O-rings are available separately; accessories such as frit insertion and removal tools, packing sleeves, column jackets, silicone seals, septum injectors, and bleed valves are also available separately—contact your Fisher Scientific Customer Service Representative for details.

Standard aqueous system with a borosilicate glass chromatographic tube and a PTFE plunger

  • Robust and easy to use
  • Biocompatible

  • Choice of columns with fixed or adjustable height; columns with an adjustable endpiece have a maximum height of 80mm (designed with fine adjustment control to minimize the risk of disturbing the packed bed)
  • For a solvent-resistant system able to withstand the harshest laboratory chemicals, simply replace the 25μm polyethylene frit in each endpiece with the PTFE frit in the included frit kit

Columns with 3.0mm I.D. (bore size) are only available with fixed endpieces on both ends and do not include frit kits.

Specifications

Endcapped Yes
For Use With (Application) Low/Medium pressure LC
Diameter (Metric) Inner 15 mm
Type Chromatography Column
Max. Pressure 600 psi
Column Capacity 12.4 mL
Length (Metric) 100 mm
Material Borosilicate Glass
