Saint Gobain Life Sciences Versilon™ C-544-A IB Tubing

Product Code. 15988682
Change view
Click to view available options
Diameter (English) Inner:
1 in.
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Product Code. Diameter (English) Inner
15988682 1 in.
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
This item is not returnable. View return policy
Product Code. 15988682 Supplier Saint Gobain Life Sciences Supplier No. AZY02064

Please to purchase this item. Need a web account? Register with us today!

This item is not returnable. View return policy

Description

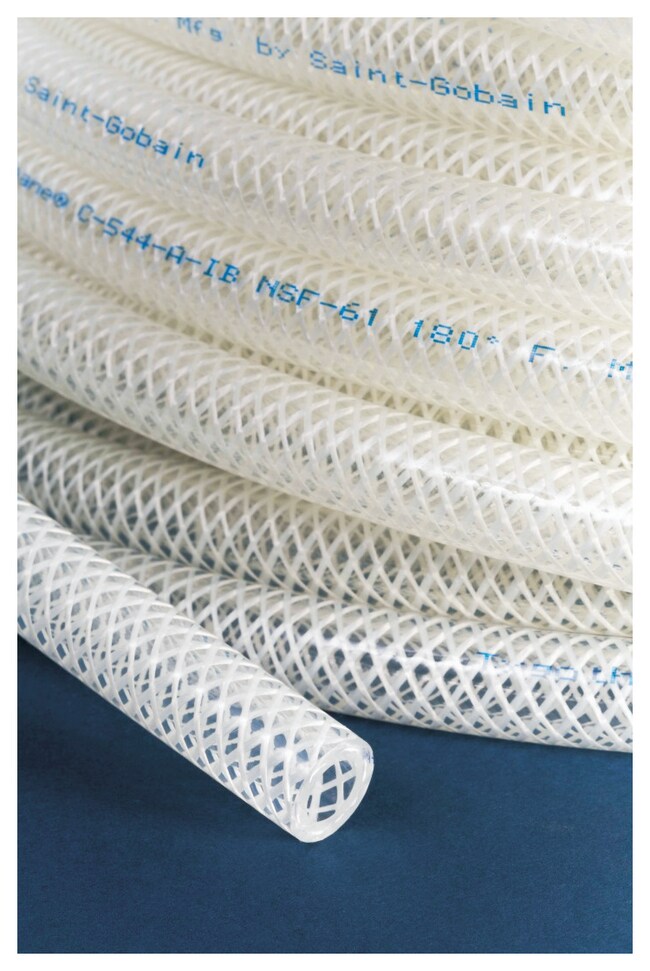

Multi-Purpose, abrasion resistant Versilon™ C-544-A IB Tubing.

Versilon™ C-544-A IB flexible, reinforced tubing from Saint-Gobain is flexible and designed for demanding applications requiring a tight bend radius where other tubes have collapsed and failed. Specially formulated from tough ether-based polyurethane resins, this tubing also retains much of its unique flexibility even at temperatures as low as -100°F (-73°C). When exposed to abrasive conditions, Versilon™ C-544-A IB tubing frequently outperforms traditional rubber, plastic and metal materials.

  • Exceptional abrasion and tear resistance
  • Tough braid reinforcement for elevated working pressures
  • Excellent resistance to oils, greases, and fuels
  • Retains flexibility in sub-zero environments

Typical Applications

  • Food and cosmetic processing
  • Abrasive and viscous slurry transfer
  • Lubrication and degreaser dispensing
  • Pellet and powder transfer
  • Pneumatic sensory devices
  • Instrumentation control lines
  • Coolant recovery systems
TRUSTED_SUSTAINABILITY

Specifications

Certifications/Compliance FDA (21 CFR, 177.1680 and 177.2600), NSF 61
Autoclavable Not Autoclavable
Diameter (English) Inner 1 in.
Diameter (Metric) Inner 25.4 mm
Material Polyurethane
Diameter (English) Outer 1.375 in.
Diameter (Metric) Outer 34.93 mm
Overall Length (English) 100 ft.
Overall Length (Metric) 30.48 m
Thickness (English) 0.19 in.
Thickness (Metric) 4.826 mm
For Use With Laboratory pumps and equipment
For Use With (Application) Resistant to chemicals, oils, greases and solvents
Min. Operating Temperature (English) -100°F
Min. Operating Temperature (Metric) -73°C
Packaging Quantity 1 Ea.
Resistance Properties 350 lb-f/in
Sterility Non-sterile
Color Clear
Hardness 85 (Shore A)
Flexibility 13 mm bend radius
Maximum Pressure 120 psi
Vacuum Level 29.9 in. Hg (at 73°F)
Max. Operating Temperature (English) 180°F
Max. Operating Temperature (Metric) 82°C
Product Type Tubing
